Demag DMR rope hoist
One rope hoist. Two designs. Many possibilities

Individual needs require specific solutions. That is why we developed the Demag DMR modular rope hoist. You can benefit from ground-breaking flexibility in all types of applications: from stationary installations to crane systems. For the first time, a rope hoist can be built either in a C-design or co-axial design utilising one basic technology. The extraordinary wide range of possible DMR applications can be extended thanks to smart interfaces and corresponding fittings and accessories.

High variability thanks to modular design

Two designs for all requirements

C-design: optimised for crane applications with compact overall dimensions and reduced approach dimensions and Co-axial design: versatile integration into virtually any construction, optional mechanical microspeed unit for even greater precision.

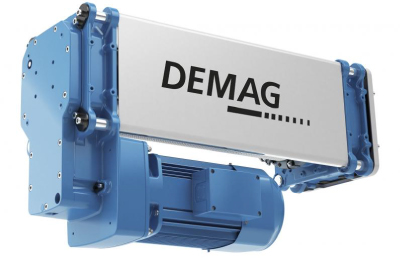

C-design

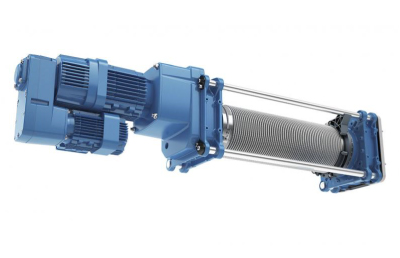

Co-axial design

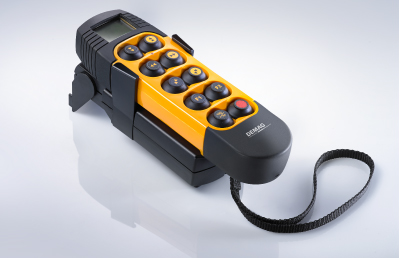

Smart Control System

Even better efficiency

A hoist inverter offers optimum utilisation of the motor’s output and enables loads to be positioned even more precisely thanks to variable speed control. It can be used to boost lifting speeds by up to 50 per cent with the ProHub function depending on the load.

F-DMR Foot-Mounted Hoist

• Ideal for stationary applications or for special crabs
• Reeving parts for all common reeving arrangements are fitted to the hoist unit – enabling foot hoists to be integrated direct into prepared steel structures or special crabs
• Can be attached on four sides

EK-DMR Low-Headroom Monorail Hoist

• C-design for compact overall dimensions and reduced approach dimensions for crane applications.
• Infinitely variable cross-travel speeds for low sway and gentle positioning (optional two-stage travel speeds)

EZ-DMR Double-Rail Crab

• Standard track gauges up to 3,550 mm (box-section girder) and 4,108 mm (V-type girder), special track gauges possible
• Anti-derailment protection for improved safety as standard
• Optimised headroom dimensions
